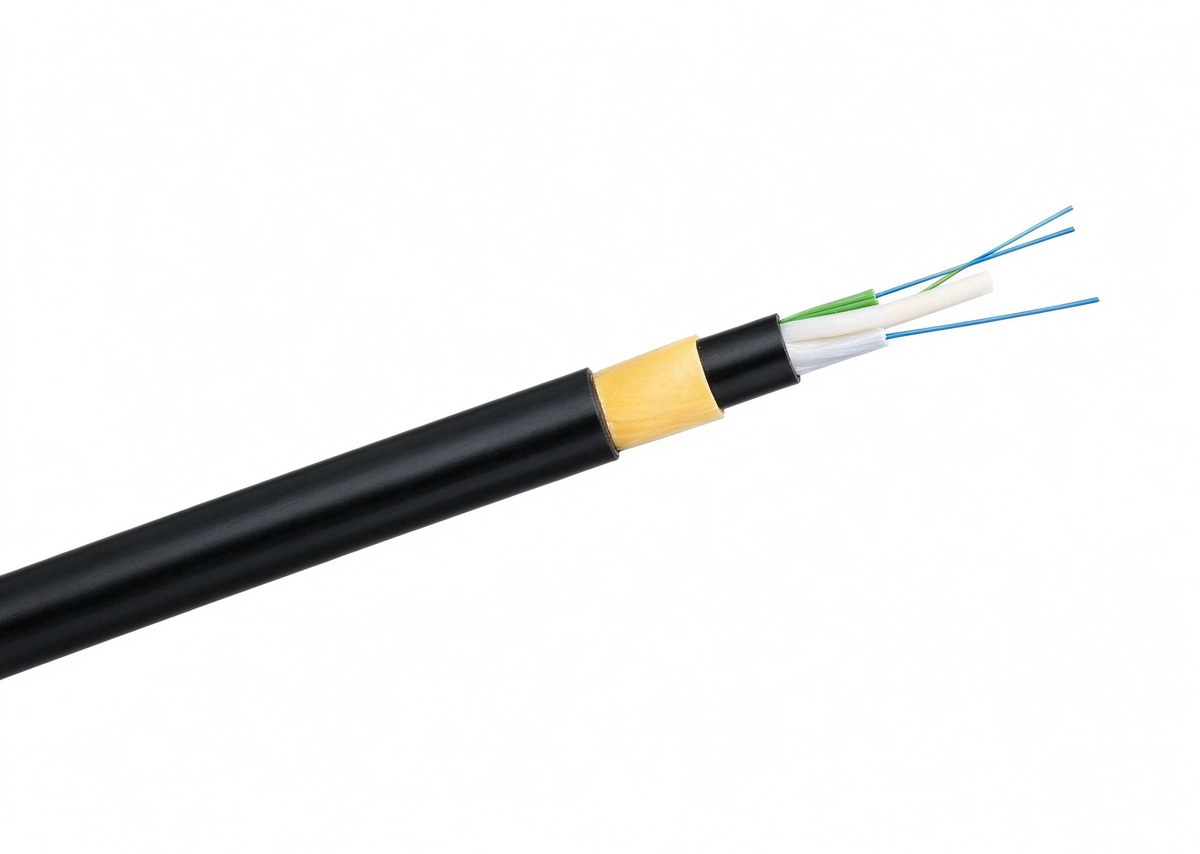

ADSS All-Dielectric Self-Supporting Cable
Product Overview
ADSS (All-Dielectric Self-Supporting) cable is fully dielectric and self-supporting, installed on existing towers without grounding. Suitable for overhead power-line communication spans of varying lengths.
Inquire NowOr email us directly: sales@gohomin.com
Product Advantages
Fully Dielectric
No conducting elements — safe on live lines, no grounding required.
Self-Supporting
Designed for aerial spans between towers.
Corrosion Resistant
AT/PE jacket options for harsh environments.
Flexible Spec
Fiber count and span customized per route.
ADSS Technical Data (Span / RTS Series)
| Designation | Reference Span (m) | Outer Material | Outer Dia. (mm) | Weight (kg/km) | RTS (kN) |
|---|---|---|---|---|---|
| ADSS-100-1 | 100 | PE/AT | ≤12.7 | ≤133 | ≥11.0 |
| ADSS-100-2 | 100 | ≤13.8 | ≤160 | ≥12.4 | ≥11.0 |
| ADSS-200-1 | 200 | ≤12.9 | ≤137 | ≥16.0 | ≥11.0 |
| ADSS-200-2 | 200 | ≤14.1 | ≤165 | ≥18.2 | ≥11.0 |
| ADSS-200-3 | 200 | ≤15.9 | ≤209 | ≥25.2 | ≥11.0 |
| ADSS-300-1 | 300 | ≤13.2 | ≤144 | ≥24.0 | ≥11.0 |
| ADSS-300-2 | 300 | ≤14.6 | ≤176 | ≥31.0 | ≥11.0 |
| ADSS-300-3 | 300 | ≤16.3 | ≤219 | ≥36.8 | ≥11.0 |
| ADSS-400-1 | 400 | ≤13.5 | ≤151 | ≥30.6 | ≥11.0 |
| ADSS-400-2 | 400 | ≤14.7 | ≤179 | ≥34.5 | ≥11.0 |
| ADSS-400-3 | 400 | ≤16.5 | ≤224 | ≥42.6 | ≥11.0 |
| ADSS-500-1 | 500 | AT | ≤13.9 | ≤159 | ≥39.0 |
| ADSS-500-2 | 500 | ≤15.0 | ≤185 | ≥40.3 | ≥39.0 |
| ADSS-600-1 | 600 | ≤14.3 | ≤167 | ≥48.0 | ≥39.0 |
| ADSS-600-2 | 600 | ≤15.3 | ≤193 | ≥49.6 | ≥39.0 |
| ADSS-700-1 | 700 | ≤14.5 | ≤173 | ≥55.0 | ≥39.0 |
Designation format: ADSS-span-version. PE jacket for spans up to ~300 m below 110 kV; AT (tracking-resistant) jacket for higher voltage and longer spans.
Fiber Attenuation & Transmission Performance
| Fiber Type | @850nm (dB/km) | @1300nm (dB/km) | @1310nm (dB/km) | @1550nm (dB/km) | Bandwidth @850nm (MHz·km) | Bandwidth @1300nm (MHz·km) | Numerical Aperture | Cable Cutoff Wavelength |
|---|---|---|---|---|---|---|---|---|
| G.652 | --- | --- | ≤0.36 | ≤0.22 | --- | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40 | ≤0.23 | --- | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3 | ≤1.2 | --- | --- | ≥500 | ≥500 | 0.200±0.015 | --- |
| 62.5/125µm | ≤3.5 | ≤1.2 | --- | --- | ≥200 | ≥500 | 0.275±0.015 | --- |
Values at +20°C. G.652 / G.655 single-mode and 50/125µm, 62.5/125µm multimode fibers available on request.
Frequently Asked Questions
Can this product be customized?
Yes. GOHOMIN accepts customization requests for this product, including fiber count, structure and jacket specification. Contact us with your specification and we will confirm feasibility and lead time.
What certifications does this product meet?
GOHOMIN products are manufactured to IEC standards and available with CE, UL, RCM, GCC, SIRIM and QUACERT-VCN certification depending on the market and project requirements.
What is the minimum order quantity?
MOQ depends on the product type and specification. GOHOMIN is a factory-direct exporter and normally accepts trial orders for project evaluation. Contact us for the specific MOQ of this item.
How long is the production lead time?
Lead time depends on specification and current production schedule. Standard models are typically faster than customized units. Contact us with your required quantity and target delivery date for a firm schedule.
Which markets do you export to?
GOHOMIN serves overseas B2B customers worldwide, with focus on Southeast Asia, the Middle East, Africa, Latin America, Central Asia and Oceania, supplying power utilities, EPC contractors, renewable energy developers and electrical distributors.
